BGA316/BGA272 Adapter
290.00 €BGA316/BGA272 adapter
Showing all 12 results
BGA316/BGA272 adapter

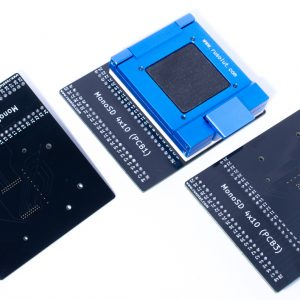

This adapter is designed for SD cards with columns of pads on sides.
It has 3 different boards to support multiple different devices. The PCB1, PCB2 boards have single 8-bit data bus and PCB3 board has dual 8-bit data bus.
The PCB2 and PCB3 have additional power (VccQ) which is necessary to improve the quality of NAND reading.

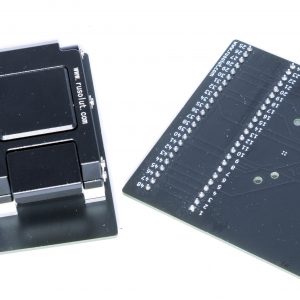

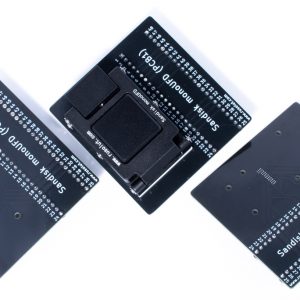

This adapter is designed for damaged Sandisk flash drives with both USB 2.0 and 3.0 interfaces. This adapter supports 4 different pinouts and therefore has 4 PCBs and 4 frames. The adapter is designed for devices with single 8-bit data bus. The socket and frames can be easily swapped between the boards, allowing you to change several different devices in a short time.

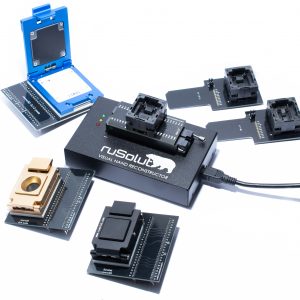

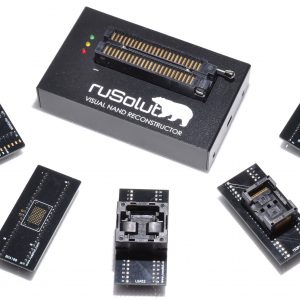

Package content:
NAND Reader
TSOP48 ZIF adapter
TLGA52 ZIF adapter
TSOP56 adapter
BGA100 adapter
BGA152 adapter
BGA154 adapter
BGA224 adapter
Monolith adapter
USB Flash drive with software
miniUSB 2.0 cable
Premium Support (1 year)
Package content:
BGA100 adapter
BGA107 adapter
BGA132 adapter
BGA137 adapter
BGA152 adapter
LGA 60 adapter
Package content:
BGA169eMMC 14*18 adapter
BGA169eMMC 12*18 adapter
BGA169eMMC 12*16 adapter
BGA169eMMC 11.5*13 adapter
BGA169eMMC 10*11 adapter
BGA162 eMMC adapter
BGA186 eMMC adapter
BGA221 eMMC adapter
NAND adapter designed for damaged microSD cards made by Kingston, Kingmax,
Toshiba, Apacer, Goodram and other brands. Adapter supports multiple card’s pcb designs with small and large pads.
The main criteria is 6 columns of 4 pads on the device. The databus size is 8 bits.
More details: https://rusolut.com/monolith-adapters/
NAND adapter designed for damaged microSD cards mainly made by Sandisk.
Adapter supports multiple card’s pcb designs which are common in ~80% of Sandisk microSD cards.
The main criteria is 3 rows of 7 pads on the device. The databus size is 8 bits.
More details: https://rusolut.com/monolith-adapters/
NAND adapter designed for damaged SD cards made by Sandisk. Adapter supports 3 different sizes of devices which are common in ~90% of Sandisk SD cards. The databus size is 8 bits.
More details: https://rusolut.com/monolith-adapters/

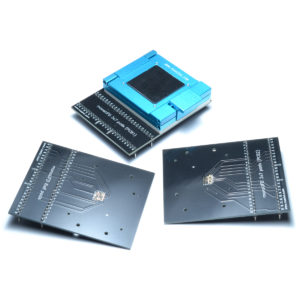

This is the adapter for monolithic USB flash disks. Adapter supports three different pinouts and therefore has three boards and two frames in kit.
The socket and frames can be easily swapped between the boards. Adapter is designed for 8-bit single databus flash chips.
Package content:

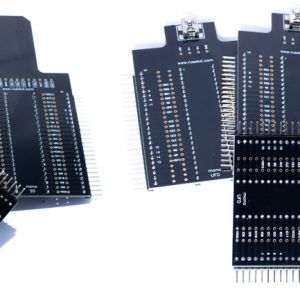

Soldering Adapters with outputs for Logic Analyzer
5 x monoSD + 5 x monoUFD

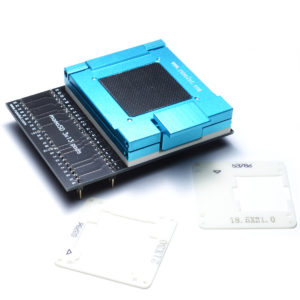

This adapter is designed for monolithic SD cards with a very common pattern of technological pads.
Adapter supports three different sizes of device and therefore has three frames in kit. Adapter is designed for single/dual 8-bit databus flash chips.
