eMMC-NAND RECONSTRUCTOR

DIGITAL FORENSICS SOLUTION

Presentations

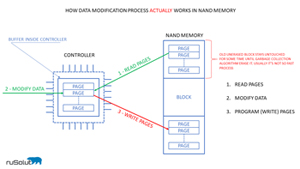

Data recovery from overwritten/garbage blocks of eMMC through NAND

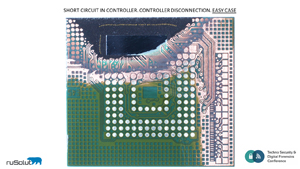

Data recovery from damaged eMMC chip
eMMC-NAND RECONSTRUCTOR is a solution for data extraction and recovery from eMMC chips through NAND interface. It is ultimate and revolutionary technology that is mainly designed for law enforcement (mobile forensics and other areas). It provides the deepest level of data recovery from areas of eMMC chips that have never been accessible before.

Key Features



  • DATA RECOVERY FROM OVERWRITTEN/GARBAGE BLOCKS OF NAND MEMORY IN EMMC CHIPS



  • DATA RECOVERY AFTER FACTORY RESET/FORMAT



  • DATA RECOVERY FROM DAMAGED EMMC CHIPS

We have been successfully utilizing Rusolut products in our forensics laboratory. By now, VNR is a standard product in mobile communications forensics. Applying the new eMMC-NAND module, we are able to read data from memories hitherto considered being defect. That is why our future opportunities in forensic case handling have extended considerably. VNR has become indispensable in modern forensics laboratories for mobile communications.
Cpt. Tom Richter, Forensic Department, State Criminal Police Office, Thuringia, Germany

eMMC-NAND Reconstructor consists of:



  • Software for automatic and semi automatic data extraction and recovery from eMMC chips via NAND interface

    Works in couple with VNR Starter kit. Lifetime license. Built-in database of automatic solutions for chips with instant online synchronization. The software works with original reader and eMMC-NAND adapters only.





  • eMMC-NAND adapters for different chips

    Buy one adapter or full set. Please note that the appearance of adapters is subject to change without prior notice.





  • Priority Support

    The first year is free. Includes software updates, database updates, consulting and remote support for eMMC-NAND cases. At a time of purchase, eMMC NAND Reconstructor is permanently linked to VNR reader with the serial number provided by the customer. The only available type of subscription for eMMC NR owners is Priority Support subscription.





  • Warranty on eMMC-NAND adapters

    1-year warranty for newly purchased adapters. Warranty is extended +1 year each time when Priority Support subscription is renewed (only if the interval between the expiration and the renewal of Priority Support subscription does not exceed 1 month). Does not cover mechanical or intentional damages.



eMMC-NAND Reconstructor purchase includes software with one adapter of a choice

eMMC-NAND ADAPTERS

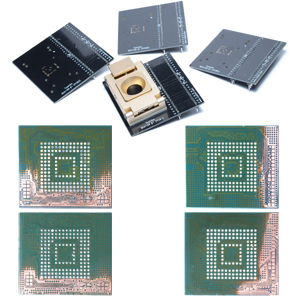

Toshiba BGA169 #1

Toshiba BGA169 #1

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • THGBM5G7A2JBAIR
  • THGBM5G5A1JBAIR
  • THGBMAG5A1JBAIR
  • THGBM5G6A2JBAIR
  • THGBMBG7D2KBAIL
  • THGBMBG7C2KBAIL
  • THGBMBG6D1KBAIL
  • THGBMHG8C2LBAIL
  • TY90HH131625RA
…and some others with same technological pads to be confirmed with technical support

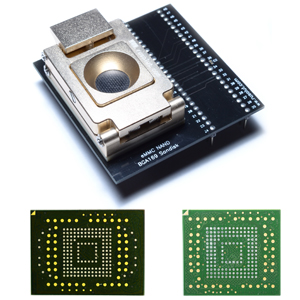

Sandisk BGA169 #1

Sandisk BGA169 #1

NAND data bus: single 8 bits
Chip size: 11,5×13; 12×16; 14×18
Supported eMMC chips:
  • SDIN7DP2-4G
  • SDIN8DE2-8G
  • SDIN7DU2-8G
  • SDIN5C2-32G
  • SD5DH26A-4G
  • SDIN5D2-4G
  • SDIN7DP4-32G
  • SDIN5C2-8G China
…and some others with same technological pads to be confirmed with technical support

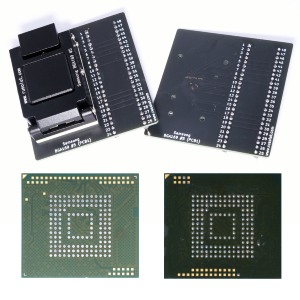

Samsung BGA169 #5

Samsung BGA169 #5

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • KMV3W000LM
  • KLMAG1JETD (partial solution)
  • KLMCG2UCTA (partial solution)
  • KLMDG4UCTA (partial solution)
…and some others with same technological pads to be confirmed with technical support

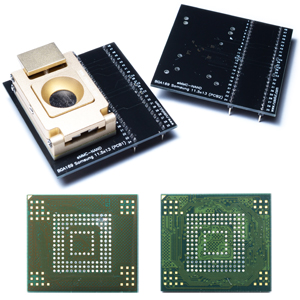

Samsung BGA169 #1

Samsung BGA169 #1

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • KLMAG2GEAC
  • KMVTU000LM
  • KLM8G2FE3B
  • KLMAG4FE4B
  • KLMBG4WEBD (partial)
…and some others with same technological pads to be confirmed with technical support

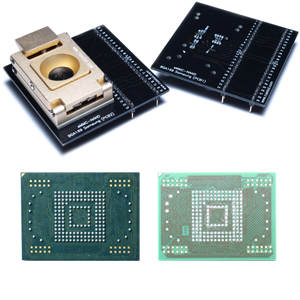

Samsung BGA169 #2

Samsung BGA169 #2

NAND data bus: single 8 bits
Chip size: 12×16;14×18
Supported eMMC chips:
  • KLMAG2GE4A
  • KMV3U000LM
  • KLM8G1WE4A
  • KLMBG4GE2A
  • KLMAG2GE2A
…and some others with same technological pads to be confirmed with technical support

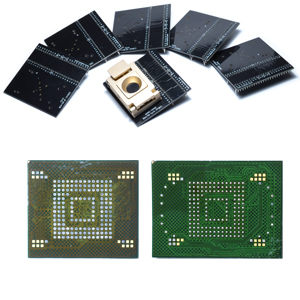

Hynix BGA169 #1

Hynix BGA169 #1

NAND data bus: single/dual 8 bits
Chip size: 11,5×13;12×16;14×18
Supported eMMC chips:
  • H9DP32A4JJAC
  • H26M41103HPR
  • H26M52103FMR
  • H26M21001ECR
  • H26M64003DQR
  • H26M64002DQR
  • H26M54003EMR
  • H26M64103EMR
  • H26M88002AMR
…and some others with same technological pads to be confirmed with technical support

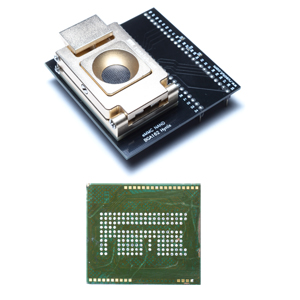

Hynix BGA162 #1

Hynix BGA162 #1

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • H9TP32A4GDBC
  • H9TP32A8JDMC
  • H9TP32A4GDMC
  • H9TP32A8JDBC
…and some others with same technological pads to be confirmed with technical support
Samsung BGA162 #1

Samsung BGA162 #1

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • KMK5U000VM
  • KMN5U000FM
  • KMN5U000ZM
  • KMK5X000VM (partial ECC)
  • KMN5X000ZM (partial ECC)
  • KMN5X000ZA (partial ECC)
…and some others with same technological pads to be confirmed with technical support

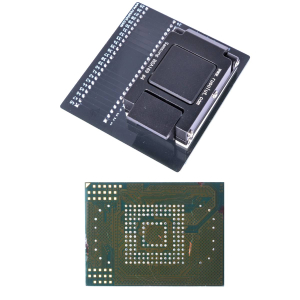

Samsung BGA169 #4

Samsung BGA169 #4

NAND data bus: dual 8 bits
Chip size: 12×16
Supported eMMC chips:
  • KMVYL000LM
…and some others with same technological pads to be confirmed with technical support
Samsung BGA221 #1 / Hynix BGA221 #1

Samsung BGA221 #1 / Hynix BGA221 #1

NAND data bus: single 8 bits
Chip size: 11,5×13
Supported eMMC chips:
  • KMQNW000SM
  • KMRNW0001M
  • KMFJW0007M
  • KMQNW0006A
  • H9TQ64A8GTMC
  • H9TQ64ABJTMC
  • H9TQ17ABJTMC
  • H9TQ64AAETMC
…and some others with same technological pads to be confirmed with technical support
Toshiba BGA169 #2 / Samsung BGA169 #3

Toshiba BGA169 #2 / Samsung BGA169 #3

NAND data bus: single 8 bits
Chip size: 10×11
Supported eMMC chips:
  • THGBM5G7A4JBA4W
  • KLMAG4FEAB
  • KLM8G2YE4C (partial ECC)
…and some others with same technological pads to be confirmed with technical support

CASE SAMPLES

Please send us email for more details and prices
