Visual NAND Reconstructor 3.5 update
We are excited to publish next huge software update right before the conference! This one is simply amazing! There are three truly revolutionary and new unique tools we added:
New File carver with integrity control
New SQLite carver
New Smart Read Retry algorithms (beta)
This is a new mode that allows to find files bypassing file system. It can find a file and tell exactly how good or bad the file is using built-in integrity control. Now you can find files in the cases where file system is corrupted, you can analyze fragments of pages and blocks of flash memory or recover deleted files with precision that hasn’t been achievable before.
You can scan image using file carver or open file system viewer in order to check integrity/quality of files (it’s not just a header check, it is internal file integrity check!).
There are several file formats fully supported now:
MS Office (docx, xlsx, pptx, and others)
Other files which based on zip archives (Open Office files, etc.)
The new file carver can not only find and check JPEG files but also save damaged files into three separate folders: Bit errors (light damage), Medium damage (fragments of picture can be shifted and puzzled) and Critical damage (file cannot be opened). We know for sure this will save you hours!
NEW SQLITE CARVER
The new SQLite carver allows to automatically create carving template which can retrieve all possible data from every corner of dump in allocated and unallocated space. It works on database files, partitions and the whole dump. It can automatically recognize various data types and use the appropriate converters to transform data to a readable form.
There are few simple steps you need to perform in order to retrieve deleted data from practically any app
NEW SMART READ RETRY ALGORITHM (BETA)
Rereading NAND flash with read retry helps to adjust reading protocol and significantly improve quality of data. All newest chips have built-in Read Retry mechanism and its usage is the only way to correct majority or all ECC uncorrectable bit errors. In the current version of software it is specifically designed for particular memory chips and available by request to support team.

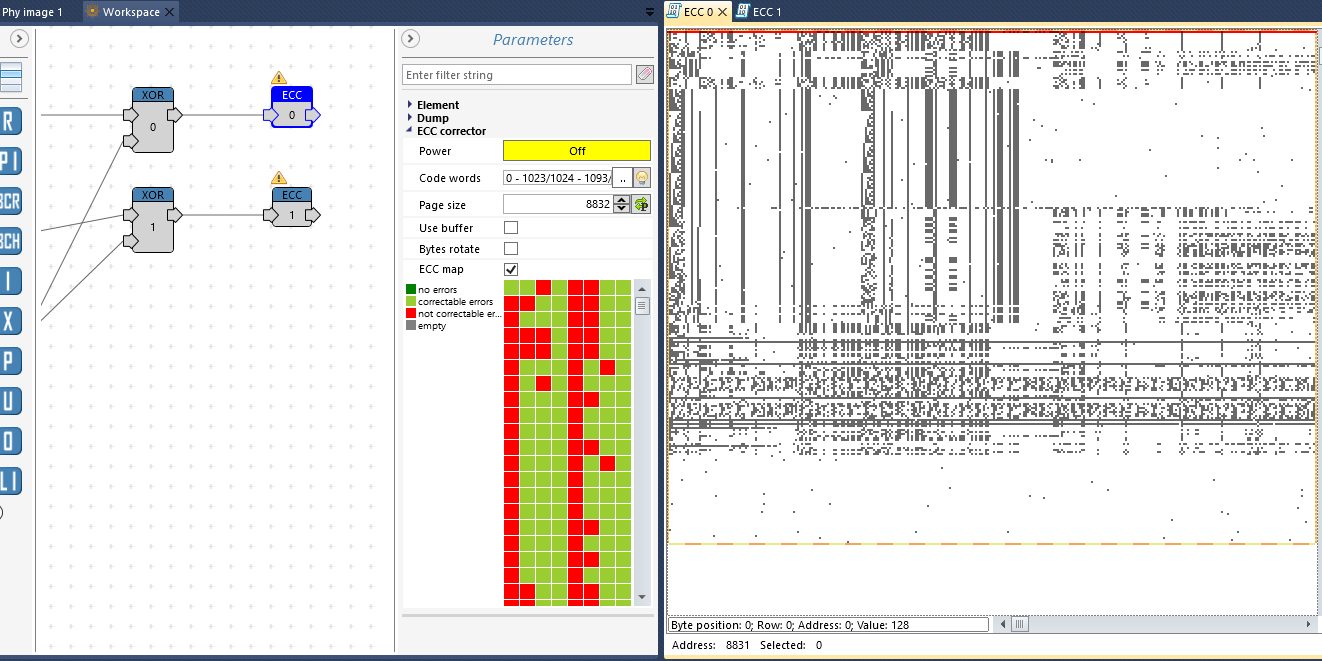

Before Read Retry
After Read Retry
ECC autodetection results are saved even if the window is closed
Select multiple blocks in markers table and change Use flag by clicking the space bar
Infobox with page and block size on toolbar for current element
Copy and paste dump structure on multiple element selection
Default read only flag is removed on Phy image
Click Esc to remove the selection
Bitmap zooms with Ctrl +/- buttons
BCR element now has a bad cloumn counter
And lot more fixes and improvements.
New NAND chips
45DE949376 – updated SDR and DDR
2C68044689 – updated
453C86937A – updated
ADD794DA74 – updated
New scramblers (XOR keys)
